Mod 2 > Week 2 > Day 1

Overview of the day

Lesson 1

Learning Objectives

Learn about the DOM
Understand how to retrieve elements of the DOM

What is the DOM?

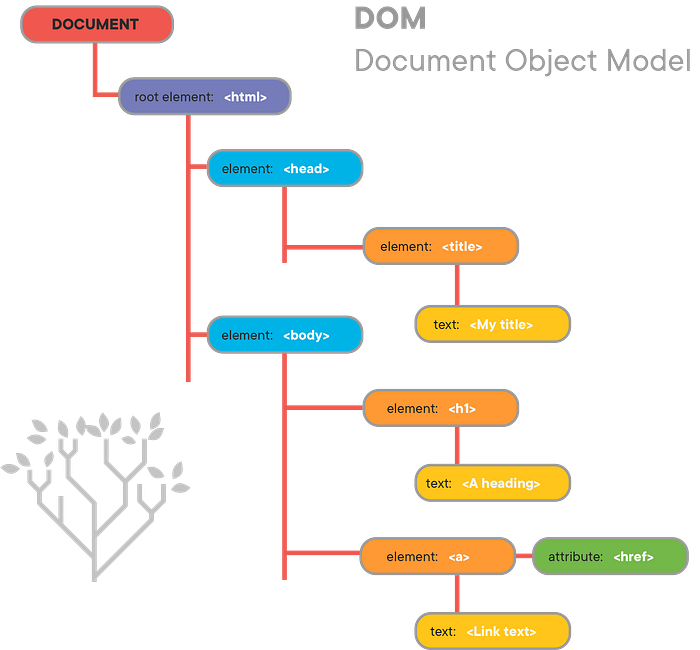

The DOM is a browser-based representation of a web page, which consists of a number of objects. It is represented as a tree structure, where each child element (called a node) belongs to a parent:

At the top level, above document is window

As you can see from the image, each node can have a number of attributes. If you know HTML, you'll know an anchor has a href, and can also have a class attribute. A node can also have a text node as a child. HTML elements like headings and anchors will typically have a text node.

In your browser console, type window.document.head. This will retrieve the head element of the page.

There are a number of ways in which we can retrieve specific elements of the DOM.

Method	Description
document.getElementById()	Returns the element that has the ID attribute with the specified value
document.getElementsByClassName()	Returns a HTMLCollection containing all elements with the specified class name
document.getElementsByTagName()	Returns a HTMLCollection containing all elements with the specified tag name
document.forms()	Returns an HTMLCollection listing all the `<form>` elements contained in the document

You will need to know getElementByld; getElementsByTagName; getElementsByClassName; document.forms for the exam.

You will also need to know how to change the value of an element or element attribute.

To change the value of an HTML attribute use element.setAttribute() e.g. button.setAttribute("class", "visible");

To change the value of a form field use .value e.g. document.getElementById("someFormField").value=newValue

To change the value of any other type of element use .innerHTML e.g. document.getElementById("p1").innerHTML = "New text!"

To retrieve the URL of a web page, type window.location.href (note this can be simplified to location.href).

Try these exam questions

Edit the commented code below to change the paragraph text:

<html>
<body>

<p id="p1">Good morning!</p>

<script>
   document./*____________*/("p1")./*____________*/ = "Good evening!";
</script>

</body>
</html>

Edit the commented code below to change the selected item:

<!DOCTYPE html>
<html>
<body>

<form>
  Select your favorite programming language:
  <select id="myChoice">
    <option value="c++">C++</option>
    <option value="java">Java</option>
    <option value="javascript">JavaScript</option>
    <option value="python">Python</option>
  </select>
</form>

<p>Click the button to change the selected language to Java.</p>

<button type="button" onclick="myFunction()">Change it</button>

<script>
function myFunction() {
  document./*_____________*/("myChoice")./*__________*/ = "java";
}
</script>

</body>
</html>

You have been asked to get the URL of the current web page and display it as placeholder text in the "url" form text field. How would you edit the commented code to achieve this? Hint - placeholder is an attribute of an text field.

<html lang="en">
  <head>
    <meta charset="utf-8" />
  </head>
  <body>
    <form action="/restaurants" method="post">
      <label for="restaurantName">Name:</label><br/>
      <input type="text" id="restaurantName" name="restaurantName"/><br/>
      <label for="url">URL:</label><br/>
      <input type="text" id="url" name="url"/><br/>
    </form>
    <script>
      var page_url = window.// ___________ . ___________

      document./*____________*/("url")/*.____________*/("placeholder", page_url)
    </script>
  </body>
</html>

Lesson 2

Learning Objectives

Working with DOM events
How to write an event handler
How to use standardised DOM methods in our programs

Working with DOM events

Standardisation of the DOM comes with many benefits for the JavaScript developer. It means that numerous methods are available across many different browsers.

One of the primary uses of DOM methods is to create an event handler that can respond to a user event such as a button click. What other user events can you think of?

Working with event handlers

Event handlers can be added both inline or within an inline or external script:

// inline event handler
<button onclick="document.getElementById('demo').innerHTML = Date()">
  The time is?
</button>

Within an inline or external script:

// get form and add listener using DOM path strategy
const targetForm = document.forms.todoCreateForm;

// first example
targetForm.addEventListener('submit', (e) => {
  console.log(e.target.name.value);
});

// second example
targetForm.onsubmit = (e) => {
  console.log('Form submitted!');
};

For the exam, you'll need to know about the following event types: onchange, onmouseover, onload, onclick, onmouseout and onkeydown

Try these exam questions

Edit the commented code below to change the form text field from "Jamie" to "Joe":

<!DOCTYPE html>
<html>
<body>

Name: <input type="text" id="myText" value="Jamie">

<p>Click the button to change the value of the text field.</p>

<button onclick="myFunction()">Change it</button>

<script>
function myFunction() {
  document./*_____________.__________*/ = "Joe";
}
</script>

</body>
</html>

You've been given the following HTML source code. It renders a green square and a green circle. You have been asked to complete the code so that when the user hovers over either the square or the cicle, the background color turns red, then goes back to green when the user hovers out.

Tip: one is an inline event and the other is in an inline script.

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <style>
      .squareBox {
        display: block;
        background-color: green;
        height: 2rem;
        width: 2rem;
        text-indent: -999px;
      }

      .circle {
        display: block;
        background-color: green;
        height: 2rem;
        width: 2rem;
        border-radius: 100%;
        text-indent: -999px;
      }
    </style>
  </head>

  <body>
    <a
      class="squareBox"
      id="squareBox"
      href="#"
      __________="__________________________ = '____'"
      __________="__________________________ = '____'"
    >
      Square box
    </a>

    <a class="circle" id="circle" href="#"> Circle </a>

    <script>
      var circle = document.______________('circle');

      circle.__________ = () => {
        circle._____________________________;
      };

      circle.__________ = () => {
        circle._____________________________;
      };
    </script>
  </body>
</html>

Challenges

Create an HTML page containing a Button called myButton. Add another Button with the words "Switch it" on it, which disables myButton when pressed and then enables it when pressed again. Clue - there is a .disabled property on a button!
Create an HTML page which captures each key press that a user types into a input text box and prints them, one at a time, below the text box.
Create an HTML page which changes from one image to another when the user hovers their mouse over the image.
Create an HTML page which displays the current date when a button is clicked
Create an HTML page which displays the URL of the current page when you click a button
