Database Fundamentals

Session 2

Session Outline

Data Modelling
Entity Relationship Diagrams
DIY Database Design
Data Warehouses
Data Integration
Types of Data Integration
Data Integration Life Cycle
Rules and Policies
Extract, Transform, Load
Combining Data
Recap

Learning Objectives

Design and visualise an entity relationship diagram for a database
Understand the principles of data integration and how it is used to help our analysis
Describe the ETL process and how it is used to in data integration

Data Modelling

Why use a Data Model?

All data objects required by the database are accurately represented

A data model helps design the database at the conceptual, physical and logical levels

Data model structure helps define relational tables, primary and foreign keys as well as stored procedures

It provides a clear picture of the base data

It can help identify missing or redundant data

Types of Data Models

Conceptual

Logical

Physical

Types of Data Models

Conceptual

Logical

Physical

An organised view of database concepts and their relationships. The purpose is to establish:

Entities

Attributes

Relationships

customer
Customer Name Customer Number

Sale

→

product
Product Name Product Price

Characteristics of a Conceptual Data Model

Offers organisation wide coverage of business concepts

Designed and developed for business audiences

Developed independently of hardware specifications like storage capacity, or software specifications like DBMS technology. The focus is to represent data as a user would see it in the 'real world'

Types of Data Models

Conceptual

Logical

Physical

Used to define the structure of data elements and set relationships between them. This type of model:

Adds further information to the conceptual data model

Provides a foundation for a physical model (yet retains a generic structure)

Does not require keys, just need to verify the connector details set for earlier relationships

customer
Customer Name Customer Number	string integer

Sale

→

product
Product Name Product Price	string decimal

Common Data Types

string/character/varchar

integer

number/float/decimal

datetime

boolean

What do we mean by data types? In module 1 we thought about quantitative and qualitative and structures, but we can expland on this by looking at how an individual piece of data may be stored. The basic type of data is string (sometimes called a character or variable character) is simply characters, like letters which can be formed into words (or other objects like serial numbers or urls for example). String data types are difficult to analyse of themselves, but can be examined for their length, how often they appear or as a basis for aggregation (average number of drinks sold per shop). Integers are whole numbers whereas if it involves a decimal it will be called (depending on the system) a number, decimal or floating point number (float). Most softwares recognise datetime as a separate data type due to how time behaves differently to most numbers. Finally is boolean, also known as True or False. A binary field which indicates if something is 'on' or 'off'. True often has value 1, and False 0.

Characteristics of a Logical Data Model

Describes data needs for a single project but could integrate with other logical data models based on the scope of the project

Designed and developed independently from the DBMS

Data attributes will have data types with exact precisions and length

Normalisation processes to the model is applied typically till 3NF

Types of Data Models

Conceptual

Logical

Physical

Describes a database specific implementation of the data model. This type of model:

Offers database abstraction and helps generate schema through the rich meta-data

Helps visualise database structure by replicating column keys, constraints and other RDBMS features

customer
Customer Name Customer Number	string integer
Primary Key Customer Number

Sale

→

product
Product Name Product Price	string decimal
Primary Key Product Name

Characteristics of a Physical Data Model

Contains relationships between tables

Developed for a specific version of a DBMS, location, data storage or technology to be used in a project

Columns should have exact data types, lengths and default values assigned

Primary and foreign keys, views, indices, access profiles and authorisations are defined

Entity Relationship Diagrams

An Entitiy Relationship Diagram (ERD) lets you see how different entities (e.g. customers, products) relate to each other in a database.

Components

Entity

Relationship

Attribute

Components

Entity

Relationship

Attribute

A defined object within a database (e.g. customers, products, contractors, etc)

Entity
Attribute1 Attribute2 Attribute3

Strong Entitiy

Has a primary key and does not depend on another entity to exist

E.g. student information

Weak Entity

Depends on another entity to exist

I.e. the primary key is a foreign key in another table

E.g. student enrolment information

Components

Entity

Relationship

Attribute

Defines how two entities are related to each other

Represented as lines with a "cardinality" that explains the number of instances between two entities

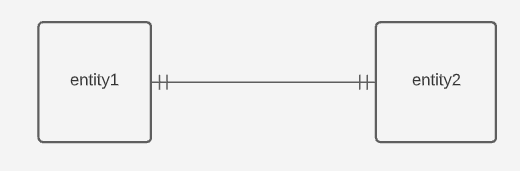

One to One Relationship

One record of an entity is directly related to another record of an entitiy

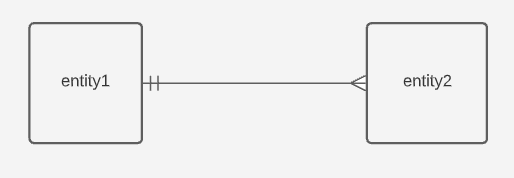

One to Many Relationship

One record of an entity is related to one or more records of another entity

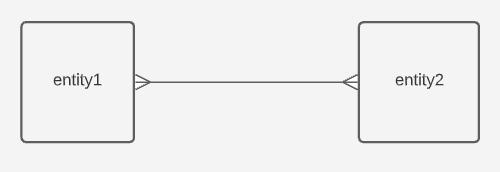

Many to Many Relationship

Many records of one entity can be related to many records of another entity

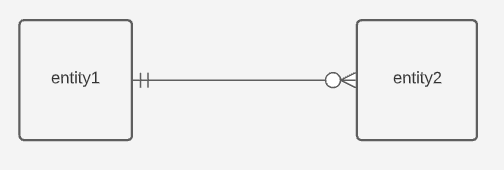

One to Zero or Many Relationship

One record of an entity is related to zero, one or more records of another entity

Components

Entity

Relationship

Attribute

A property of an entity

Attribute Type	Description	Example
Simple	Cannot be split into other attributes	First name, surname
Composite	Can be split into other attributes	Name (can be split into forename, middle name and surname)
Derived	Calculated or determined from another attribute	Age of record calculated from creation date

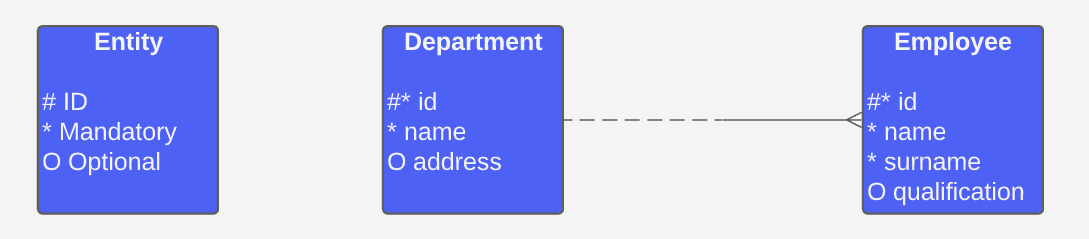

(You may need to refresh screen if chart doesn't appear) Again ask apprentices to try and read this table. For each item sold in a transaction there will exist a unique row which will be identified by the transaction number, customer id and product id. This means that each customer can be referenced in several records in the transaction table, hence one to one-or-many. Likewise, a product can be sold more than once but will only have one record in the product table. Several products may be sold by the same supplier. If a transaction contains more than one product, they will likely be shipped together (but the shipping information will only appear in one record). However, a customer may choose to pick up the item in store, so it won't have been shipped, hence the one-or-many to zero-or-one relationship (we will ignore the case where a transaction can be shipped seperately). Several shipments may be carried by the same shipper. Finally, a customer may have bought several products across several transactions which is why there is a one-or-many to one relationship.

Barker Notation

DIY Database Design

Spotify

What is its purpose?

Stream music based on artists, albums, playlists or genres

What is the user input?

Track title, album title, artist name or playlist title

What will the user receive?

Music content

Spotify

What database tables are required?

Artists

Albums

Playlists

Tracks

Users

Activity

The state of Iowa wants to design a database that records alcohol sales from all stores in the state.

Using the information on the following slide, design an ERD to show how how the database should bs structured.

Entity	Transaction	Product	Store	County
Attributes	ID Date item_no store_id	item_no description case_cost proof	store_id store_name address county	county population

Data Warehouse

'Data Warehousing' is a practice in data management whereby data is copied from various operational systems into a persistant data store in a consistent format to be used for analysis, decision making and reporting.

Key Features

Optimised for low number of complex queries

Contains historical data

Are taken off line when updates are required

Data warehouses are primarily used as a platform for advanced analytics such as recommendation algorithms or generating powerful insights, whereas as RDBMS is more used for storing transactional information for quick references and quick snapshots of the data. As such data warehouses are better suited for advanced queries which derive in depth insights through a deep dive into the data. A reason for this is because warehouses generally do not contain 'live' data (a RDBMS does), but recent data that came with the last upload. This allows for the analytics to run without being interupted because new data is coming in. A consequence of this is that if new data is to be added, the warehouse must come offline for the ETL process to happen. Usually this is done outside of working hours to avoid disruption.

Increased availability of data

Superior quality of data

Collaboration opportunities

Greater insights and improvements

Benefits

Data Warehouse vs Database

	Data Warehouse	Database
Processing	OLAP	OLTP
Structure	Denormalised table containing repeated data	Highly normalised with different tables
Optimisation	Rapidly executing low number of complex queries on large multi-dimensional datasets	Updating, deleting and modifying data
Timeline	Historical data	Current real-time data
Uptime (SLA)	Regular downtime to allow batch uploads	Approx 100% uptime
Query Type	Complex queries for in depth analysis	Simple transactional

So how does a data warehouse differ from a database? Warehouses process their data using Online Analytical Processing whereas Databases use Online Transactional Processing (we will explore both of the concepts in the next two slides).
Warehouses will be one denormalised table which may carry repeats, whereas databases will be highly normalised across several tables to remove redundant data- although this will introduce the need for joins.
Warehouses are ideal for executing quickly complex queries to gain powerful insights using data from across a business, while databases are ideal for quick snapshots and summary information.
Due to the nature of a warehouse, they can only hold historical data which is uploaded periodically (usually outside working hours). This is so analysis can be carried out without the goalposts being changed because new data is constantly being added. Databases will hold current data and will be constantly updated.
Warehouses will use quite complex queries as they are able to produce powerful analysese while databases will use something simple like SQL to query.

Online Transactional Processing (OLTP)

OLTP provides transaction orientated applications, administering day to day transcations of an organisation. For example:

Supermarkets

Online banking

Airline ticket booking

Adding items to a shopping cart

Online Analytical Processing (OLAP)

OLAP consists of data analytics tools that are used for making business decisions. It provides an environment to leverage insights from multiple database systems at one time. For example:

Recommendation algorithms (e.g. Spotify suggested, Amazon products)

Virtual assisstants (e.g. Alexa, Siri)

Targeted Adverts

Suggested LinekedIn connections

Data Integration

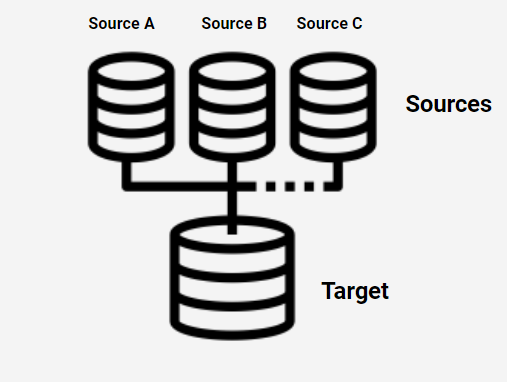

Data Integration is the process of collecting data from a variety of sources into a single target.

Data Integration Sources

Text Files

Databases

Spreadsheets

Applications

Increased availability of data

Superior data integrity and quality

Collaboration opportunities

Greater insights and improvements

Improved data consistency

Benefits of Data Integration

Types of Data Integration

Batch

Data transfered from source to target in groups periodically

Data formats and layouts must be consistent between source and target

Source and target are 'asynchronus' (source doesn't wait for target to process data)

Real-time

Data transfered from source to target instantly

Involved a much smaller amount of data and used when it is necessary to complete a single transaction

Source and target are 'synchronus' (changes in source are reflected in target)

Data Integration Life Cycle

1. Scoping

2. Profiling

3. Design

4. Testing

5. Implementation

Technical Requirements

Business Requirements

Data Requirements

Operational Requirements

1. Scoping

2. Profiling

3. Design

4. Testing

5. Implementation

Understand our data

Duplicates
Null values
Format
Data Types
Values

1. Scoping

2. Profiling

3. Design

4. Testing

5. Implementation

Decide on the architecture of the data warehouse using business, technical and operational metadata

1. Scoping

2. Profiling

3. Design

4. Testing

5. Implementation

Validation and verification of coding interface

Test the process works

User Acceptance Testing (UAT)

Technical Acceptance Testing (TAT)

Performance Stress Testing (PST)

1. Scoping

2. Profiling

3. Design

4. Testing

5. Implementation

Implement the process at an operational level

Rules and Policies

You must specifiy security policies (e.g. who has access?)

Data integrated should be immutable (unchanging)

Validation checks should be carried out during the process

Validate the source and target table structure and data types

Validate the column names against a mapping document

With data (particularly PII or insider data) the question has to be, does this person need access? GDPR states that data must be processed in a manner which secures its security and used in a way which is relevant. A way to ensure this is to only give access to those who need it, so having a set of security policies and rules (including how to get access approval and how they data should be used) should be established. To help protect data integrity, the data itself should not be changed once it has been integrated- it should be in the form exactly as you defined it. You should caary out validation checks throughout the process to ensure the source data is in the correct form, the column names are mapping correctly and other errors (such as incorrect data types, null values and outliers) are identified and dealt with. You should also check that there isn't a 'back door' that will allow users (potentially malicious) to gain access.

Verification is also carried out on the Data Warehouse

Verify the data is accurate

Verify the data is correct

Verify the data has not been duplicated in the Data Warehouse

If you are wanting to use Business Data...

Get Permission from the Data Owner!

Data owners are given the right to decide who can have access to enterprise data

The process involved may be something like this:

A person (staff member, contractor, supplier, etc) requests access to information

A business resource (Data owner, manager) will review the request

A techinical resources (usually a DBA) physically grants permission to an application, database or other data store containing the data

Often the permission follows a CRUD schema (create, read, update, delete)

Extract, Transform, Load

How would you count the number of occurrences of each word in all the books found in a library using a team of people?

Step 1

Divide the books among the team so every person has an allocation

Step 2

Each person will keep a record of the occurrences of each word in their allocation

Word	Count
Apple	2
Bird	7

Word	Count
Apple	5
Bird	1

Step 3

Finally combine the different records into one unified view which contains each word in the library.

Word	Count
Apple	7
Bird	8

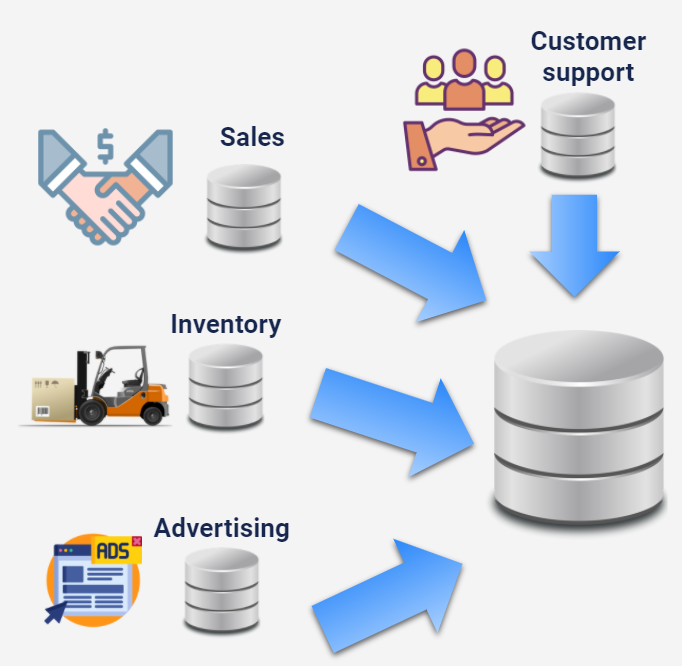

Extraction is the process of gathering data from a variety of disparate sources

The extracted data is usually copied from the source, not moved

Validation occurs at this stage to ensure the data is in the correct structure and format, as well as ensuring necessary permissions have been given

The process can be continuous or done in batches

Extract

Transform

Load

The first stage in the process is extraction. This is when you identify and collect the data from all the sources you require. Note, you don't 'take' the data but a copy is made and sent to the warehouse. This means the original source is left untouched. It also means that if any changes are made to the source, these will not be reflected in the warehouse until an update is made. A consequence of this is that warehouses are static (making querying and processing quicker) but potentially out of date if the source changes (fast flowing databases like sales or inventory will change throughout the day, so ETL updates may need to happen regularly). Often when a warehouse is updated it will need to be taken 'offline' so extraction tends to happen outside of working hours to avoid disruption for users. You will validate your sources at this time to ensure they contain the correct information.

Transformation is the process of ensuring the extracted data is in a consistent format

This can include removing null values, changing data types and ensuring field names are the same

As the extracted data is a copy, the original will remian unchanged

Extract

Transform

Load

Loading is the process of joining the transformed data together into a single unified view (called the target)

Data verification is undertaken post loading to ensure the combined data is accurate and fulfils the necessary business requirements

With 'Big Data' this process is done using parallel processing to manage the large volume of data being written to the system

Extract

Transform

Load

a

Benefits

Allows for a unified view of data that is otherwise spread out across an organisation

Ensures data consistency across an organisation allowing for missing data and errors to be identified throughout a pipeline

Encourages collaboration across teams

Better business intelligence and insights for making decisions through greater data availability

Information Structure and Rules

Data integration activities for data warehouses requires that you follow some basic rules:

Security policies must be specified by organisations providing data sources to prevent data leakage and unauthorised access
Access layers (e.g. networks, firewalls, servers, etc) between sources and targets should be properly configured (especially of data is sourced externally)
Integrated data should be immutable- you should not be able to change the data once it is stored in the unified view
Validation checks should be carried out during ETL:
Source and target table structures and data types should be consistent
Column names should be the same as defined by a mapping document

Information Structure and Rules

Data integration activities for data warehouses requires that you follow some basic rules:

Verification is also carried out on the target:
Verify that the data is accurate
Verify the data is the 'right' data to be stored in the target
Verify the data has not been duplicated

Combining Data

Things to consider

What were the data sources?

How did you transform the data into a consistent format?

How did you join the data together?

How did you verify the accuracy of your integrated data?

How did you address security risks?

What was the benefit of combining your data?

Recap

Learning Objectives

Design and visualise an entity relationship diagram for a database
Identify starting points for overcoming project and technical problems
Implement Quality Control measures and know how to assure the quality of data uploads and query output

Assignment
Database Design
Use a work-related dataset to design your own relational database. You should describe the dataset, follow the normalisation steps and create an Entity Relationship Diagram (ERD).
Word Count	Max 1500 words
Deadline	3 weeks
Deliverables	Word Document, PowerPoint, Excel File, PDF, Lucid Chart

Additional Resources

Testing Strategies

Dealing with Problems

Complete Session Attendance Log and Update Your OTJ
